Product features:
1. Digital linear array scanning camera is adopted, with high image separation rate and clarity.

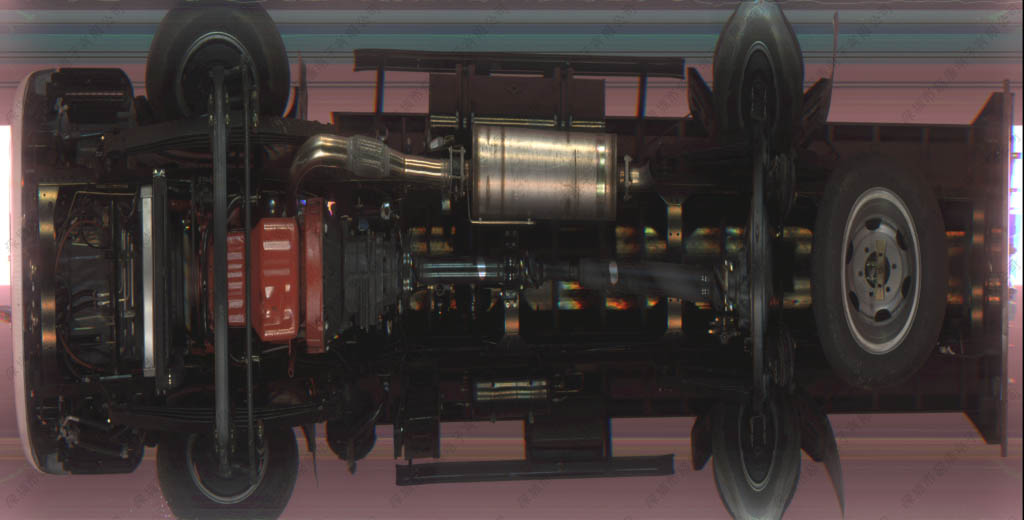

2. The bottom of the vehicle is completely imaged without any omission, and the image is clear, complete and free of distortion. Objects with a diameter of not less than 2mm can be clearly observed.
3. IP68 high protection grade, anti pressure and anti-seismic, suitable for use in any climate environment.
4. The inspection process can be prepared on site to meet various on-site needs.
5. Multi channel scene image monitoring and recording function.
6. Multi language operation interface design.
7. Support image recognition or RFID technology for vehicle identification.
8. Support the networked control function of multiple devices.
Performance index:
1. Linear CCD scanning technology is used for dynamic imaging;
2. Scanning mode: fully automatic, infrared trigger condition scanning mode;
3. Maximum scanning rate: 18khz;
4. Longitudinal resolution of vehicle bottom image: 2048 pixels CCD;
5. Image resolution: more than 10000 × 5340；
6. Detection speed: 1-60km / h, recommended ≤ 30km / h;
7. Scanner data line: 10M; (length can be customized);
8. Underbody image scanner: designed with the unique open wide field of view underbody image acquisition technology;
9. Field of view angle: 170 degrees;
10. Auxiliary lighting: 160W;
11. Lighting components: two single sealed LED surface light sources; Service life: 50000h;
12. Unidirectional scanning;
13. Bearing capacity: 30t;
14. Waterproof grade: IP68 to meet all-weather work;
15. Ambient temperature: - 20 ℃ - + 60 ℃;
16. Scanning device weight: 28KG;
17. Scanning device volume: 450 × four hundred × 88mm；
18. Working voltage: DC24V;
19. System power supply: ac110-240v/50-60hz.
